Details

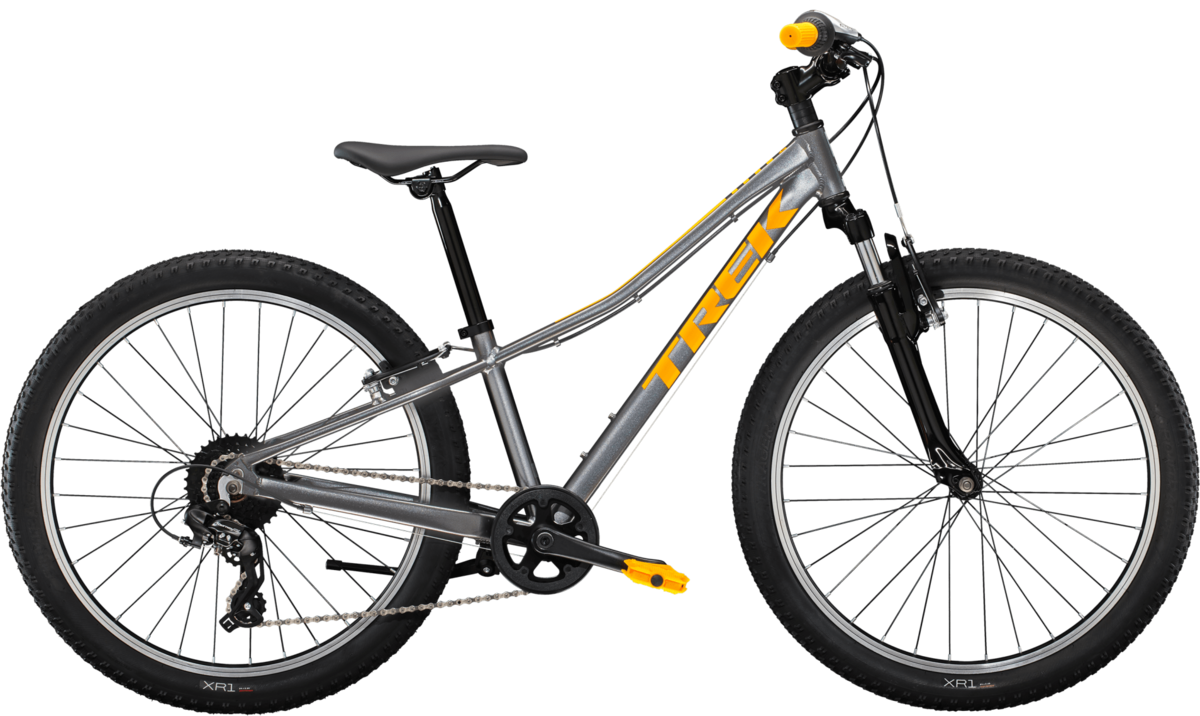

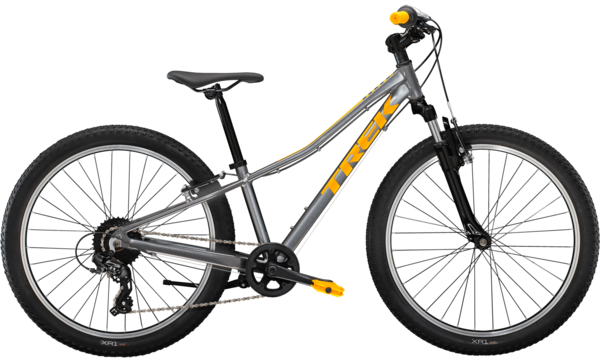

Precaliber 24 8-Speed Suspension is a versatile kids' bike built for young adventurers who love riding off the pavement and into the dirt. It has a sturdy yet light aluminum frame with a performance suspension fork and an 8-speed drivetrain perfect for racing home from school, zipping through the woods, and riding trails and paths with family.
For kids ages 8-12, between 51-59 inches tall.
- This bike can get your youngster hooked on a lifetime hobby that's healthy, environmentally friendly, and fun
- Intuitive twist-shift makes it easy for kids to switch gears when their terrain changes
- You can replace the saddle's integrated handle with an integrated light mount to boost visibility on family adventures and solo excursions
- Like all Precaliber bikes, the frame is lower so it's easier for kids to stand over and hop on and off
- Investing in a kids' bike from an established bike brand is worth it—Trek kids' bikes are designed and assembled by people who know bikes
| Wheel size | 24" Kid's |
|---|---|
| A — Seat Tube (cm) | 30 |
| B — Seat Tube Angle | 72.0° |
| C — Head Tube Length (cm) | 9 |
| D — Head Angle | 70.0° |
| E — Effective Top Tube (cm) | 52.9 |
| F — Bottom Bracket Height (cm) | 24.7 |
| G — Bottom Bracket Drop (cm) | 7.3 |
| H — Chainstay Length (cm) | 42 |
| I — Offset (cm) | 4.5 |
| J — Trail (cm) | 7.8 |
| K — Wheelbase (cm) | 97.6 |
| L — Standover (cm) | 56.8 |
| M — Frame Reach (cm) | 35.3 |
| N — Frame Stack (cm) | 54.1 |
| Size | Rider Height (in) | Rider Height (cm) |
|---|---|---|
| 12" Wheel | 2'10" - 3'4" | 86 - 102 |
| 16" Wheel | 3'3" - 3'10" | 99 - 117 |
| 20" Wheel | 3'9" - 4'4" | 114 - 132 |
| 24" Wheel | 4'3" - 4'11" | 130 - 150 |
| 26" Wheel | 4'9" - 5'3" | 146 - 160 |
Specs
| Frame | Alpha Silver aluminum, rack and kickstand mounts, replaceable derailleur hanger, 135x5mm QR |
|---|---|
| Fork | Kids' suspension, threadless steerer, 45mm travel |
| Rims | 24'' 32-hole alloy |
| Hubs | Steel, 100mm bolt-on |
| Tires | Bontrager XR1, wire bead, 27tpi, 24x2.25'' |
| Bottom Bracket | Square taper, 68mm, sealed cartridge |
| Crankset | ProWheel alloy, 32T steel ring w/double guard, 152mm length |
| Shifters | Shimano Tourney RS45, 8 speet twist |
| Rear Derailleur | Shimano Tourney TX80 |
| Cassette/Freewheel | C-Star freewheel, 13-34, 8 speed |
| Chain | KMC Z8.3 |
| Brakes | Alloy linear-pull // Alloy linear-pull |
| Brake Levers | Kids', alloy |
| Handlebars | Kids' steel, 25.4mm clamp, 40mm rise, 560mm width |
| Tape/Grips | Kids' grip, 130mm width |
| Stem | Bontrager Approved alloy, 25.4mm clamp, 15 degree rise, 60mm |
| Headset | Adjustable ball bearing, threadless |
| Seatpost | Steel, 27.2mm, 300mm length |
| Saddle | Kids' 24'' size, padded |
| Pedals | Kids' Satellite, 9/16 thread |
| Accessories & Extras | Kickstand |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Anthracite / 24-inch | 768682594841 | 5276069 | PRE29175356E |
| Nautical Navy / 24-inch | 768682594827 | 5276070 | PRE31865244Y |
| Aloha Green / 24-inch | 768682594704 | 5276072 | PRE29984666N |
